SATA 6Gb/s interface
iSMART disk health monitoring
Intelligent error recovery system
Excellent data transfer speed
Zero mechanical interference
Anti-vibration mechanical design
JEDEC standard MO-300 dimension

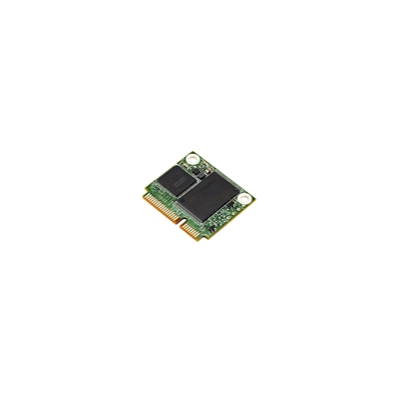

| Module Name | mSATA mini 3ME3 |
| Interface | SATA III 6.0 Gb/s |
| Flash Type | MLC |
| Type | Standard |
| Capacity | 8GB~128GB |
| Sequential R/W (MB/sec, max.) | 220/80 |
| Max. Power Consumption | 0.5 W (3.3V x 150 mA ) |
| Max. Channels | 2 |
| ATA Security | Y |
| H/W Write Protect | N |
| S.M.A.R.T. | Y |
| Thermal Sensor | ST- Optional / WT- Default |
| Dimension (WxLxH/mm) | 29.85 x 26.8 x 3.7 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature |
Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
| Operation Temp. | 8GB | 16GB | 32GB | 64GB | 128GB |
|
Standard Grade (0°C ~+70°C) |
DEMSM-08GD09BC1SC | DEMSM-16GD09BC1&C | DEMSM-32GD09BC1DC | DEMSM-64GD09BC1DC | DEMSM-A28D09BCADC |
|
Industrial Grade (-40°C ~ +85°C) |
DEMSM-08GD09BW1SC | DEMSM-16GD09BW1&C | DEMSM-32GD09BW1DC | DEMSM-64GD09BW1DC | DEMSM-A28D09BWADC |
